ØFeature：

l±15°(FOV)@360°full angle scan, measuring range:100m,

lMore compact size: 97 (D)×84.2(H) (mm),

lInnovative optical design, high manufacturability,

lHigh stability, excellent accuracy in extreme high and low temperature，

l310k/s point cloud density with azimuth, distance, reectivity data,

lCertication: FCC, EMC, CE, RoHS, REACH,

lAccept customization: number of wires (4~32), wiring method, explosion-proof, protection level,

lIP66 Protection Level

ØApplication scenarios：

The OLEI’s patented cooling design ensures that this LiDAR still has excellent accuracy in extreme high and low temperature environments.

OLEI can provide the ODM business according to the customer specific requirement, including: 4 to 32 lines, outlet direction, explosion-proof and protection levels.

It is mainly used in various industrial autonomous applications, such as AGV, automatic forklift, inspection robot; it can also be used in other applications such as mobile mapping, 3D measurement and so on.

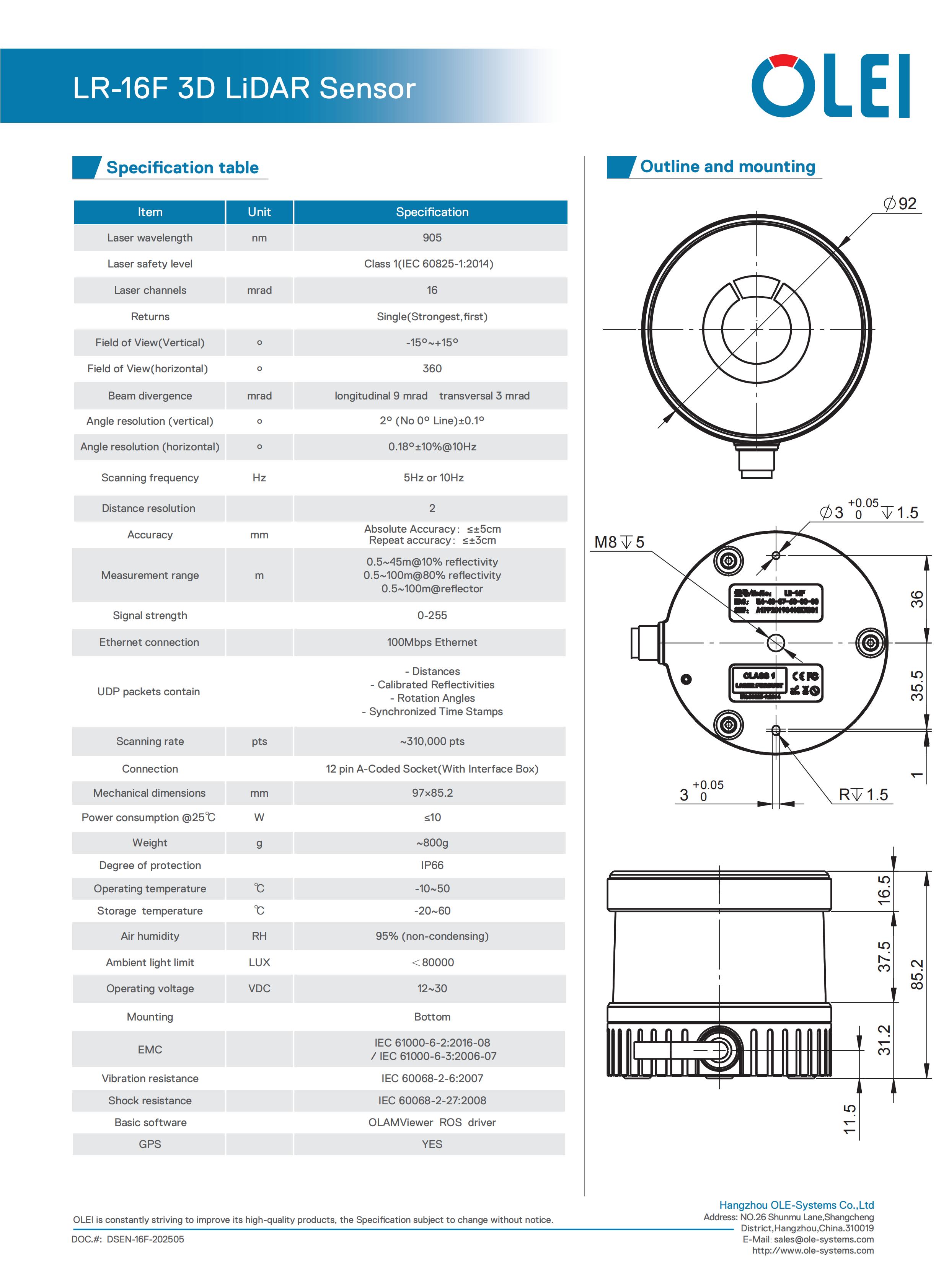

LR-16F LiDAR has undergone rigorous calibration, inspection and verifcation processes performed by professional laboratories.OLEI strives to provide reliable, high quality, rugged and robust sensor products to customers.
