Industrial


Although the operating procedures of industrial robots tend to be highly reproducible, the absolute safety of the robot's working area cannot be fully guaranteed.

OLEI Safety LiDAR can set a custom protection and warning area in the robot working area. Once other equipment or operators mistakenly enter the work area, it can trigger an external alarm to instruct the robot to stop running immediately and ensure the safety of equipment and personnel.


Related Products

VF 2D 360° LiDAR Sensor

●IP rating: IP65/IP67; ●Anti-sunlight interference capability can reach 80K Lux; ●When ESD level reaches Level 4 (EN IEC 61000-4-2:2009) 8KV, contact discharge occurs; and in case of 15KV, air discharge occurs; ●It still has the detection ability when used in moderate or light rain; ●Reliable industrial connector and adapter;

GS1-5: 2D 270° Functional Safety LiDAR

●Compliance the IEC61508/IEC62061 SIL2 safety grade standard ●Compliance with ISO13849 PLd safety grade standard ●Compliance with the safety performance requirements of IEC61496 Type3 ●Compliance with IEC60825 Class1 laser safety grade standards ●With the OLEl dedicated configuration software , freely setup to 32 areas ●Minimum detection object diameter ≥20mm , maximum 5 meters of safety protection area , maximum 20 meters of warning area ●IP65 waterproof and dustproof capability ●ESD grade up to Level 4(IEC61000-4-2) 8KV contact discharge15KV air discharge ●High reliability industry standard connectors

LR-1BS5+ : 2D 270° Data Output LiDAR Sensor

●Suitable for SLAM navigation and point cloud obstacle avoidance in scenarios such as asphalt road or in the machine room ●With unique target enhancement technology, 10% reflection target can reach 15m ●User-settable weak signal threshold strength adjustment to cope with dierent usage scenarios ●Built-in multi-level ltering algorithm, customers can set as needed to deal with tailing problems ●Fixed 0.225° angle resolution horizontal plane error of ±0.5°to ensure horizontal scanning distance ●Maximum point cloud density is 40k/s: Provide azimuth, distance, reflection intensity and other data ●Certication: FCC, EMC, CE, RoHS, REACH,FDA ●IP66 Protection Level

LR-1BS5H : 2D 270° Data Output LiDAR Sensor

●Suitable for SLAM navigation and point cloud obstacle avoidance strategies ●User-settable weak signal threshold strength adjustment to cope with different usage scenarios ●Built-in multi-level fltering algorithm, customers can set as needed to deal with tailing problems ●Fixed 0.225° angle resolution ●Horizontal plane error of ±0.5°to ensure horizontal scanning distance ●Maximum point cloud density is 40k/s: Provide azimuth, distance, reflection intensity and other data ●Certication: FCC, EMC, CE, RoHS, REACH ●IP66 Protection Level

LR-1BS2 : 2D 270° Obstacle Avoidance LiDAR Sensor

●Obstacle avoidance LiDAR with excellent cost performance ●Suitable for obstacle avoidance and safety area protection, with detection capability up to 20m ●Switching output with point cloud data (Through PLC or point cloud data) ●±0.5° horizontal angle accuracy ●Safe area can be set freely, 16-bank.3-level protection ●Certification: FCC, EMC, CE, RoHS, REACH, FDA ●Protection level: IP66

LR-1BS1 : 2D 270° Survey LiDAR

●Survey LiDAR with excellent cost performance ●Suitable for obstacle avoidance and safety ●area protectionSwitching output with point cloud data (Through PLC or point cloud data) ●±0.5° horizontal angle accuracy ●Safe area can be set freely, 16-bank.3-level protection ●Certication: FCC, EMC, CE, RoHS, REACH, FDA ●Protection level: IP66

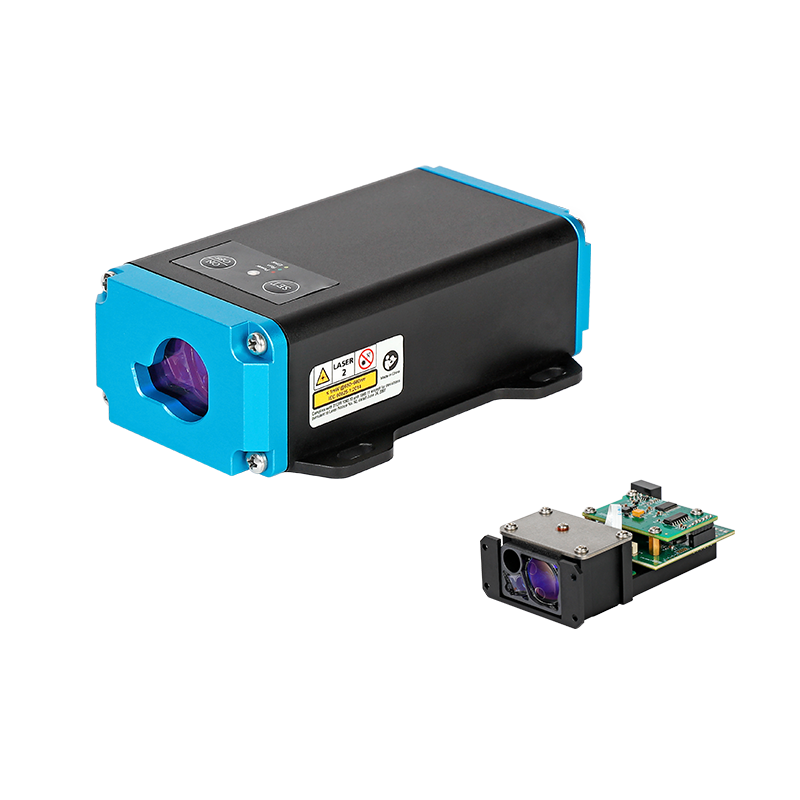

A090/A200 Laser Distance Sensor

●Range Resolution: 0.1mm ●Frequency: up to 30Hz ●Range: 0.05-90/200m (Natural target) ●Ambient light limit: <30klux ●Interfaces: RS485, CAN, analog, ●1 switch input, 2 switch outputs ●Working temperature: -20~+55℃
